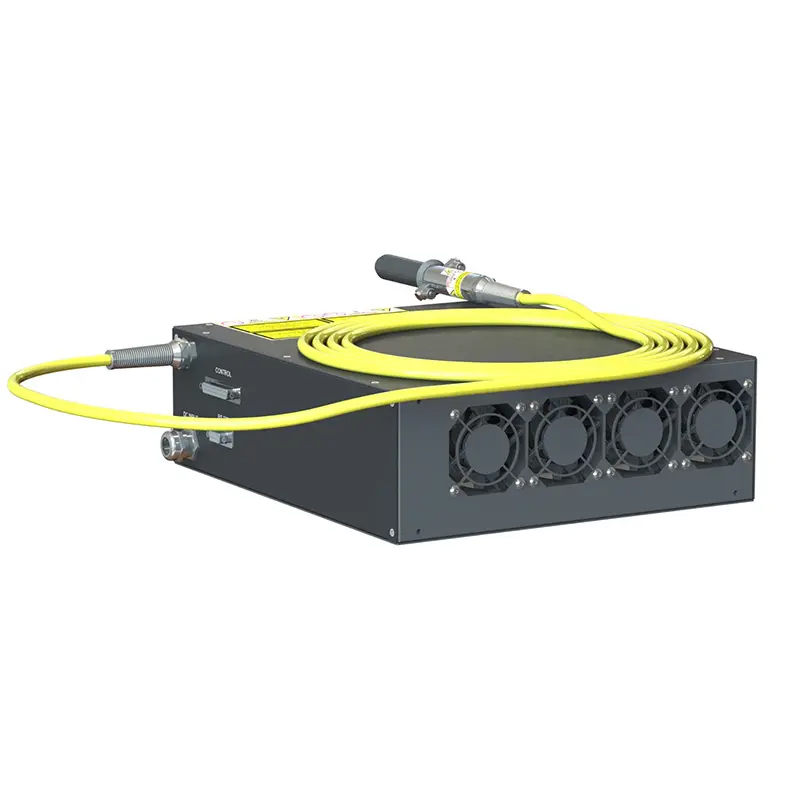

500W Air-Cooled Continuous Fiber Laser

Payment Type:	L/C,T/T,D/P,D/A,Paypal
Incoterm:	FOB,DDU,CFR,Express Delivery,CIF,EXW,DAF,FAS,DES,FCA,CPT,CIP,DEQ,DDP
Min. Order:	1

Contact Now

Add to Basket
Share to:

Basic Info

Model No.: 500W Air-Cooled Continuous Fiber Laser

Brand: Zixu

Model: YDFL-500-CW-SM-A-HW

Operation Mode: Continuous Wave (CW) / Quasi-CW

Output Power: 500W

Central Wavelength: 1080 ± 10 nm

Beam Quality (M2): ≤ 1.5

Polarization: Random

Modulation Frequency: Up to 5 kHz

Power Tuning Range: 10% – 100%

Delivery Cable: 5 meters QBH standard (customizable)

Core Diameter: 14 μm

Cooling Method: Air-cooled

Power Supply: 220V ±10%, 50/60 Hz

Max Power Consumption: 1800W

Dimensions (L×W×H): 320 × 283 × 100 mm

Weight: ≤ 9 kg

Operating Temp.: 0°C ~ +40°C

Storage Temp.: -20°C ~ +60°C

Humidity: 10% – 85% RH (non-condensing)

Additional Info

Transportation: Ocean,Express

Place of Origin: China

Payment Type: L/C,T/T,D/P,D/A,Paypal

Incoterm: FOB,DDU,CFR,Express Delivery,CIF,EXW,DAF,FAS,DES,FCA,CPT,CIP,DEQ,DDP

Product Description

Compact. Efficient. Versatile.

The YDFL-500-CW-SM-A-HW is a high-performance, air-cooled, single-module Yb-doped continuous wave fiber laser developed for industrial-grade laser processing. With a rated output power of 500W, it delivers excellent beam quality and stability, making it ideal for applications such as laser welding, Laser Cleaning, and laser cutting.
