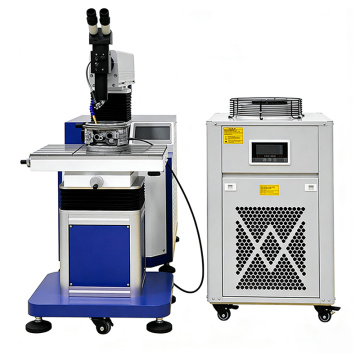

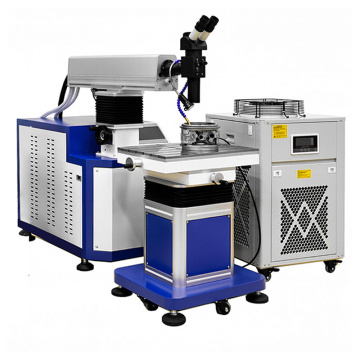

High Precision YAG Laser Welding Machine
High Precision YAG Laser Welding Machine
High Precision YAG Laser Welding Machine
High Precision YAG Laser Welding Machine
High Precision YAG Laser Welding Machine
High Precision YAG Laser Welding Machine
  • High Precision YAG Laser Welding Machine
  • High Precision YAG Laser Welding Machine
  • High Precision YAG Laser Welding Machine
  • High Precision YAG Laser Welding Machine
  • High Precision YAG Laser Welding Machine
  • High Precision YAG Laser Welding Machine
View the big picture

High Precision YAG Laser Welding Machine

    Payment Type: L/C,T/T,D/P,D/A,Paypal
    Incoterm: FOB,DDU,CFR,Express Delivery,CIF,EXW,FAS,DAF,DES,FCA,CPT,CIP,DEQ,DDP
    Min. Order: 1

Basic Info

Model No.: High Precision YAG Laser Welding Machine

Brand: Zixu

Laser Type: YAG

Laser Power: 200W / 300W / 400W / 450W / 600W

Laser Wavelength: 1080 ± 5nm

Max. Welding Depth: 0.1 ~ 1.5mm

Pulse Duration: 0.1 ~ 20ms

Pulse Frequency: 5 ~ 20Hz

Cooling Method: Water cooling

Power Input: 100 ~ 240VAC @ 50 / 60 Hz or 360 ~ 440VAC @ 50 / 60 Hz

Operation Temperature:: 5~ 40℃ or 41 ~ 104℉

Storage Temperature:: -10 ~ 60℃ or 14 ~ 140℉

Relative Humidity:: 10 ~ 75%, no condensation

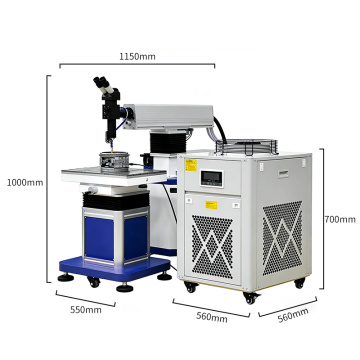

Dimension: 1150 * 550 * 1000mm & 560 * 560 * 700mm

N.W.: 270kg

Additional Info

Packaging: Wood carton,1300 * 700 * 1250mm & 700 * 700 * 820mm,300kg

Transportation: Ocean,Express

Place of Origin: China

Payment Type: L/C,T/T,D/P,D/A,Paypal

Incoterm: FOB,DDU,CFR,Express Delivery,CIF,EXW,FAS,DAF,DES,FCA,CPT,CIP,DEQ,DDP

Product Description

Whether it's injection molds for plastics and rubber, or die-casting molds for metal parts, defects such as wear, cracks, collapse, chipping, and pinholes can occur under long-term high pressure and high temperature operation, leading to tolerance drift, decreased precision, and even premature scrapping. Therefore, regular maintenance and timely repair have become a mandatory course for large-scale injection molding companies.
?

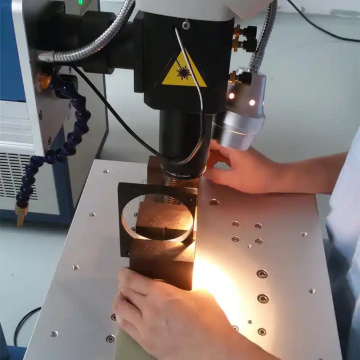

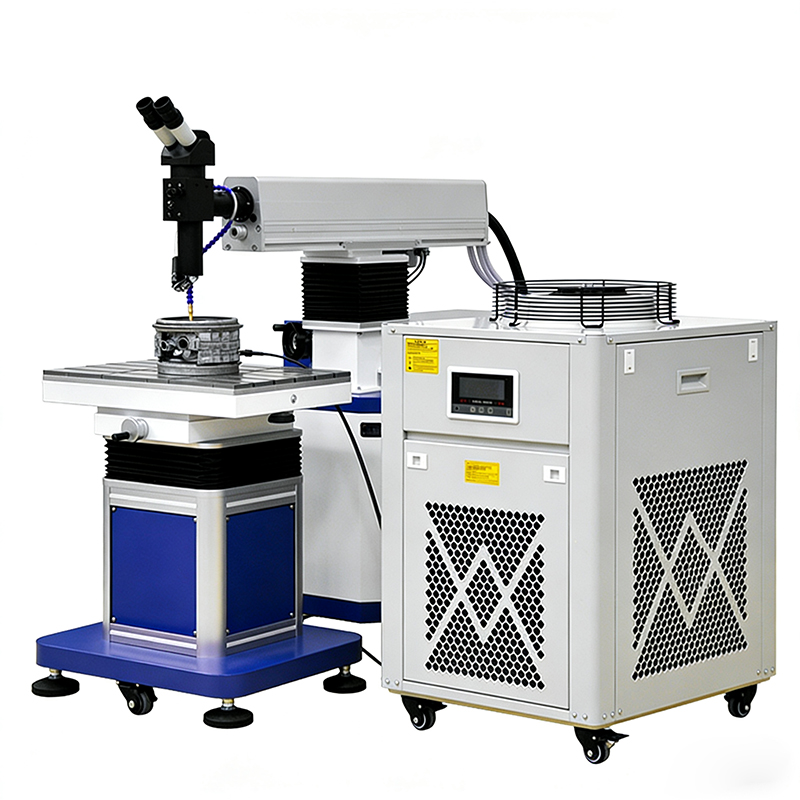

This YAG mold laser repair welding machine, with its high instantaneous power YAG laser, can precisely weld cracks and fissures in one go under real-time guidance from a CCD camera and optical microscope, leaving almost no heat-affected zone. Combined with a dedicated worktable for overhead crane loading and unloading, injection molds for 380–1000 t injection molding machines can be quickly positioned and changed in seconds, achieving "repair and production immediately."
?
On the same production line, if only marking is required instead of welding repair, it can be switched to Laser Marking Machine mode with a single click: using the same YAG light source, a QR code, serial number, or date is printed on the mold cavity surface via galvanometer scanning. This allows for mold history tracking while avoiding secondary damage caused by the steel needle impact of traditional Pneumatic Marking Machines.
?
In Other words, this machine serves as a "mold repair station" during the day and transforms into a Marking Machine production line at night, offering dual functionality. This allows large-scale injection molding companies to simultaneously accelerate both maintenance and traceability, making it an irreplaceable and highly efficient tool.
?
Laser galvanometer welding machine
?
