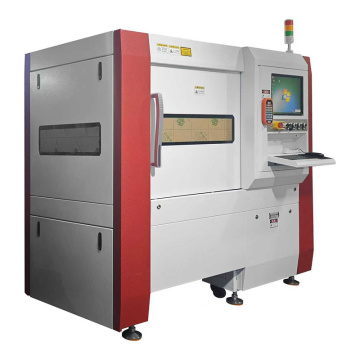

1500W Enclosed Precision Laser Cutting Machine

    Payment Type: L/C,T/T,D/P,D/A,Paypal
    Incoterm: DDU,FOB,CFR,CIF,DAF,EXW,Express Delivery,DES,FAS,FCA,CPT,CIP,DEQ,DDP
    Min. Order: 1

Basic Info

Model No.: 1500W Enclosed Precision Laser Cutting Machine

Brand: Zixu

Laser Type: Fiber

Laser Brand: MAX, Raycus or customize

Laser Power: 1500W

Laser Wavelength: 1070 ± 10nm

Work Area: 1200 * 1200mm or customize

Cooling Method: Air cooling

Power Input: 360 ~ 440VAC @ 50 / 60 Hz

Operation Temperature:: 10 ~ 40℃ or 50 ~ 104℉

Storage Temperature:: -10 ~ 60℃ or 14 ~ 140℉

Relative Humidity: 10 ~ 80%, no condensation

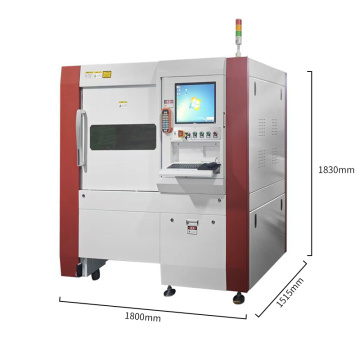

Dimension: 1800 * 1515 * 1830mm

N.W.: 1202kg

Additional Info

Packaging: Wood carton,1930 * 1620 * 2070mm,1272kg

Transportation: Ocean,Express

Place of Origin: China

Payment Type: L/C,T/T,D/P,D/A,Paypal

Incoterm: DDU,FOB,CFR,CIF,DAF,EXW,Express Delivery,DES,FAS,FCA,CPT,CIP,DEQ,DDP

Product Description

?

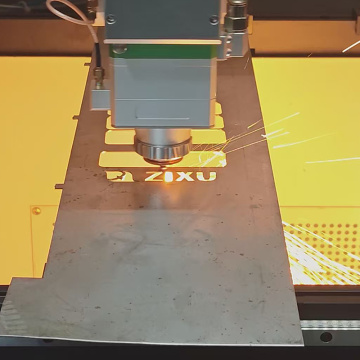

This 1500W enclosed precision Laser Cutting Machine uses a Raycus or MAX 1500W air-cooled CW laser, enabling high-speed precision cutting and micro-hole processing on stainless steel, carbon steel, and aluminum materials up to 2mm thick. It excels at one-time forming of thin plates and metal foils under 1mm thick. Compared to common gantry-type large-format laser cutting machines, it boasts three key advantages:
?
1. All XYZ axes are equipped with high-acceleration servo motors, instead of traditional stepper motors. Combined with the control system's path optimization algorithm, cutting efficiency is increased by over 40% compared to comparable gantry machines;
?
2. Servo motor stopping accuracy reaches the micron level, allowing precision parts to be directly assembled without secondary polishing, truly achieving "cut and use";
?
3. The same Laser Source can be switched to Laser Marking Machine mode with a single click: QR codes, batch numbers, or logos are projected onto the part surface, achieving "cut first, mark later" in one stop, saving the time of transporting to a dedicated Marking Machine. If only shallow serial number engraving is required, an optional Pneumatic marking machine sub-shaft can be added. This utilizes micro-impact pins to create permanent marks with a depth of only 0.02mm on the cut edge, without damaging the surface coating, meeting traceability needs in various scenarios.
?
In short: This 1500W enclosed precision Cutting Machine = high-speed cutting machine + Online Laser Marking Machine + optional Pneumatic marking machine, enabling precision machining of thin plates from "cutting" to "marking" in one go.
