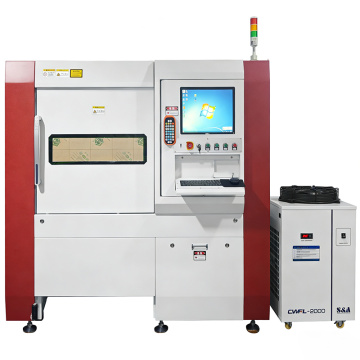

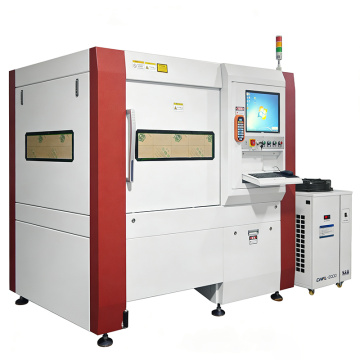

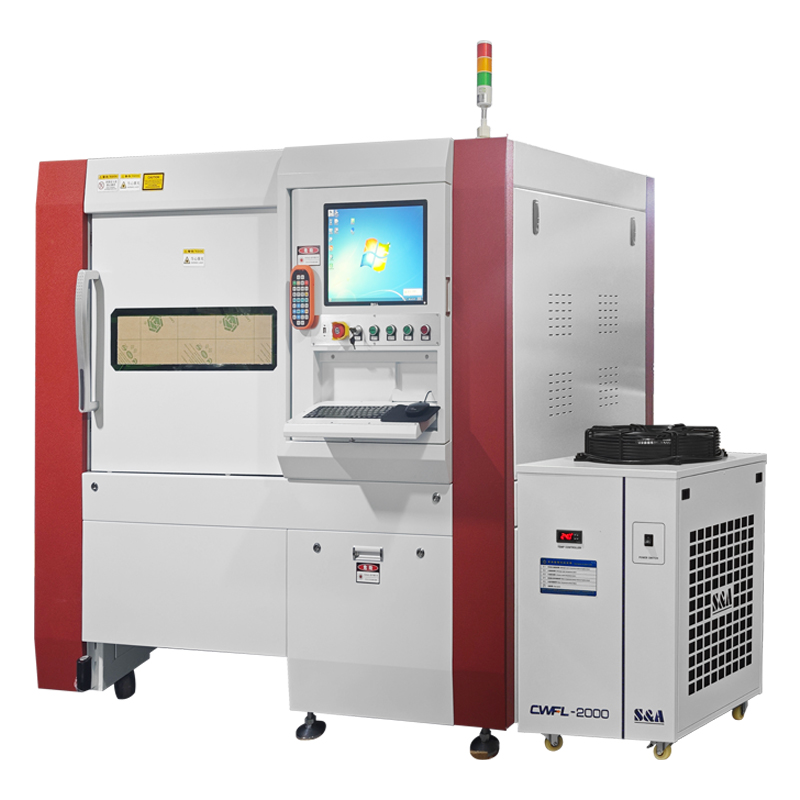

3000W Enclosed Precision Laser Cutting Machine
3000W Enclosed Precision Laser Cutting Machine
3000W Enclosed Precision Laser Cutting Machine
3000W Enclosed Precision Laser Cutting Machine
3000W Enclosed Precision Laser Cutting Machine
3000W Enclosed Precision Laser Cutting Machine
  • 3000W Enclosed Precision Laser Cutting Machine
  • 3000W Enclosed Precision Laser Cutting Machine
  • 3000W Enclosed Precision Laser Cutting Machine
  • 3000W Enclosed Precision Laser Cutting Machine
  • 3000W Enclosed Precision Laser Cutting Machine
  • 3000W Enclosed Precision Laser Cutting Machine
View the big picture

3000W Enclosed Precision Laser Cutting Machine

    Payment Type: L/C,T/T,D/P,D/A,Paypal
    Incoterm: FOB,DDU,CFR,Express Delivery,CIF,EXW,DAF,FAS,DES,FCA,CPT,CIP,DEQ,DDP
    Min. Order: 1

Basic Info

Model No.: 3000W Enclosed Precision Laser Cutting Machine

Brand: Zixu

Laser Type: Fiber

Laser Brand: MAX, Raycus or customize

Laser Power: 2000W / 3000W

Laser Wavelength: 1070 ± 10nm

Work Area: 1200 * 1200mm or customize

Cooling Method: Water cooling

Power Input: 360 ~ 440VAC @ 50 / 60 Hz

Operation Temperature:: 10 ~ 40℃ or 50 ~ 104℉

Storage Temperature:: -10 ~ 60℃ or 14 ~ 140℉

Relative Humidity:: 10 ~ 80%, no condensation

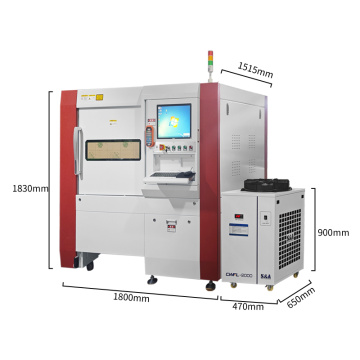

Dimension: 1800 * 1515 * 1830mm & 770 * 550 * 1030mm

N.W.: 1205kg / 1230kg

Additional Info

Packaging: Wood carton,1930 * 1620 * 2070mm & 780 * 650 * 1170mm,1275kg / 1300kg

Place of Origin: China

Payment Type: L/C,T/T,D/P,D/A,Paypal

Incoterm: FOB,DDU,CFR,Express Delivery,CIF,EXW,DAF,FAS,DES,FCA,CPT,CIP,DEQ,DDP

Product Description

?
This 3000W enclosed precision Laser Cutting Machine is designed specifically for thin metal materials: stainless steel, aluminum, copper, sheets up to 3 mm thick, and foils up to 0.05 mm thick can all be precisely cut and micro-hole processed in one pass. Compared to traditional gantry-type large-format laser cutting machines, its core differences are threefold:
?
All three axes utilize high-acceleration servo motors instead of stepper motors, coupled with internal path optimization algorithms, increasing cutting efficiency by over 40%;
?
Micron-level stopping precision allows precision parts to be directly assembled without secondary polishing;
?
The same fiber Laser Source can instantly switch to Laser Marking Machine mode: QR codes, serial numbers, or logos are projected onto the cut contour edge, enabling "cut first, mark later" one-stop production, eliminating the time required to transport the parts to a separate Marking Machine.
?
For those requiring only shallow engraving of traceability codes, an optional Pneumatic marking machine sub-axis can be added, using micro-impact pins to create permanent marks ≤0.02 mm deep on the cut edge without damaging the surface coating.
?
Fiber Optic Cutting Machine
?
